Heavy Security Screens

By installing our HP-1050 Series security screen on your building, you now eliminate the threat of someone coming in through the windows. These are a great product to protect your School or University in an urban area. They can be mounted to your masonry opening or mated to your new or existing windows.

Integral Security Screens

Mated directly to your window (considered the future of window protection for Urban schools).

 Advantages to Integral Security Screens:

  • Saves on cost of installation
  • No Lifts or Scaffolding Required
  • Windows will be protected immediately

Standard Features

  • 3/8″ diameter locking bolts
  • Heavy-duty steel hinges
  • Galvanized Steel Mainframe
  • Single point release

Heavy Duty Screens, Impact and Sag-Resistant Security

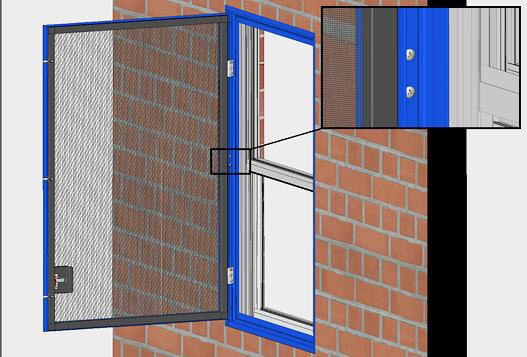

Attaching Screen to Directly to the Window

 Attach screen track adapters to window frame using hex head screws

Attach screen track adapters to window frame using hex head screws

Align screen with adapters and prop up the door to expose the pre-drilled holes for attachment

Align screen with adapters and prop up the door to expose the pre-drilled holes for attachment

Attach screen to adapter piece using hex head screws

Attach screen to adapter piece using hex head screws

Close screen Install window

Close screen Install window

Masonry Mounted Security Screens

Heavy Security Screens
Mounted directly though the face of the guard into mounting angle or the window. Exposed security fasteners

Fixed Guard

Mounted directly though the face of the guard into mounting angle or the window. Exposed security fasteners
Mounted into masonry opening with lead anchors. Need a minimum of 2 1/2" inches of reveal. Side-hinged with single point release. Exterior access (i.e. camlocks) and panic paddles available. All fasteners are concealed.

Standard Mount

Mounted into masonry opening with lead anchors. Need a minimum of 2 1/2″ inches of reveal. Side-hinged with single point release. Exterior access (i.e. camlocks) and panic paddles available. All fasteners are concealed.
Used when you want to mount onto the face of the window or into the face of the brick when 2 1/2" inches of reveal is not present. Side-hinged with single point release. Exterior access (i.e. camlocks) and panic paddles available. All fasteners are concealed.

Surface Mount

Used when you want to mount onto the face of the window or into the face of the brick when 2 1/2″ inches of reveal is not present. Side-hinged with single point release. Exterior access (i.e. camlocks) and panic paddles available. All fasteners are concealed.
Used whenever you have multiple guards either vertically or horizontally; all standards options apply in this application.

H-Mullion (Multiple Guards)

Used whenever you have multiple guards either vertically or horizontally; all standards options apply in this application.

Drawings and Specifications

Heavy-Duty Screens & Medium Screens

Heavy Duty Screens, Impact and Sag-Resistant Security (HP - 1050 Series)

Drawings

Specifications

  • Architectural Specifications: PDF

Performance Test Report

  • Test Report: (Heavy): PDF

Medium Security Window Screens (500 Series)

Drawings

  • Attached to Storefront: PDF
  • Attached to Door: PDF
  • Top Hinged w/ Slide Bolts (no subframe): PDF
  • Top Hinged w/ Slide Bolts (subframe): PDF
  • Top Hinged w/ Nail Flange: PDF

Specifications

  • Architectural Specifications (no subframe): PDF
  • Architectural Specifications (subframe): PDF

AC Box

Drawings
